RelationVGGT: Visual Geometry Transformers for 3D Spatial Relation Segmentation

Abstract

Recent advances in 3D reconstruction have progressed from per-scene optimization to feed-forward inference, and semantic scene understanding has followed suit—yet existing methods remain confined to object-centric perception, neglecting spatial relations between objects. We formulate 3D spatial relation segmentation in a feed-forward, pose-free multi-view setting: given a visually specified subject and a relational text query, the model segments the target across views without receiving its category name. To this end, we propose RelationVGGT, a novel feed-forward framework that integrates semantic features from a visual foundation model with geometry-aware representations from a 3D geometry foundation model and leverages a relation transformer for subject-conditioned, cross-view relation prediction—requiring neither per-scene optimization nor known camera poses. We additionally provide a fully automated annotation pipeline built on ScanNet++ with VLMs and LLMs, enabling scalable training data generation for this new task.

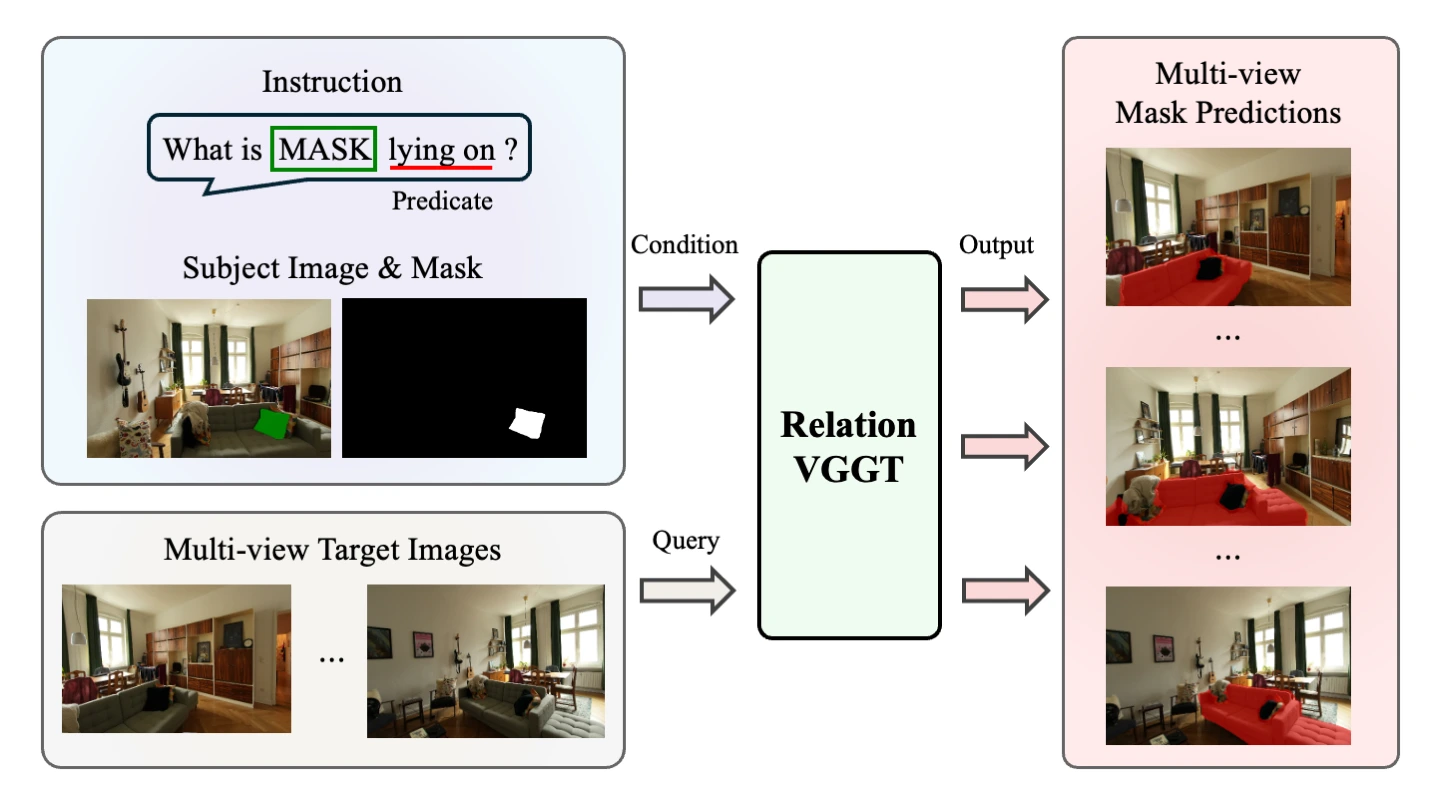

The task

A scene is captured by a set of images. One of them is the reference view, where a mask marks the subject: the object the relation starts from. A relational text query names the spatial relation, and the target is the object that satisfies it with respect to the subject. For every other view, the model must segment that target. If the subject is a monitor and the query is “resting on”, the answer is the desk under it, in every view where the desk appears.

Given

Unposed multi-view images of a scene
A subject mask in a single reference view
A relation phrase, e.g. “resting on”

Predict

The target object’s mask in every other view

Never given

The target’s category name
Camera poses or per-scene optimization

Key insight

3D relational reasoning does not require volumetric search: 3D-aware features and pixel-wise geometric grounding let us localize relational targets directly in image space.

What changed? From volumetric search to pixel-grid prediction

The closest prior work, RelationField, models relations inside a radiance field. We keep the idea of a relation feature but move where it is predicted.

Prior work: volumetric search

g_θ(x, z) ↦ r

x: 3D position of a candidate target point
z: 3D position of the query subject
r: relation feature between x and z, compared with the text embedding of the query

Finding the target means evaluating g_θ at every candidate x in the scene volume. That requires an explicit reconstruction optimized per scene from posed images, and scene-specific positional encodings tie what is learned to one coordinate system.

RelationVGGT: pixel-grid prediction

f_θ(I_r, M_s, I_t, u) → r_t(u)

I_r: reference image, the one view where the subject is marked
M_s: binary mask of the subject in I_r
I_t: a target view: any of the other images
u: a pixel location in I_t
r_t(u): relation feature between pixel u and the subject, aligned with the language embedding space

With the subject fixed by I_r and M_s, the search moves onto each target view’s image grid. Comparing r_t(u) with the query embedding e(q) gives a dense relevance map directly: no volume to sweep, no per-scene optimization, and the model transfers to unseen scenes.

The task also differs from 3D referring segmentation, where a text expression can name the target outright. Here the subject is specified visually and only the relation is given in words, so the target’s identity must be inferred from the subject–relation pair.

Method

RelationVGGT turns the reference subject and a set of unposed views into language-aligned relation features for every target-view pixel, in a single forward pass.

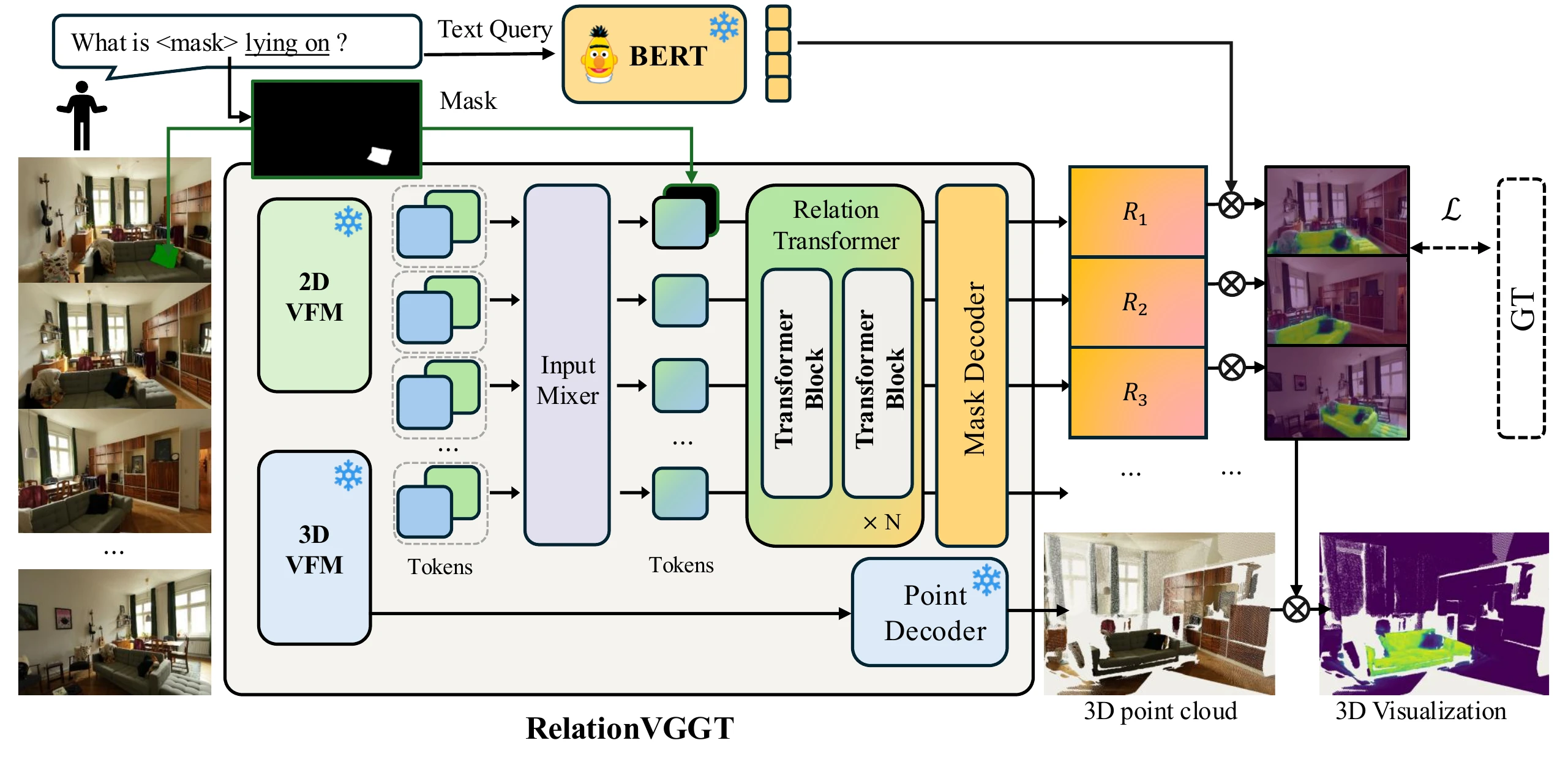

RelationVGGT architecture overview — **Overview of RelationVGGT.** Multi-view images are encoded by frozen 2D and 3D visual foundation models and fused by an input mixer. The subject mask conditions the relation transformer, whose output is decoded into per-view relation feature maps. The target is segmented by feature–text similarity with the encoded relational query.

Semantics meet geometry

Dense DINOv2 features supply object-level semantics; Pi3 encoder tokens supply multi-view geometry. An input mixer fuses both into joint tokens for every view.

Relation transformer

Target tokens alternate cross-attention to the subject-masked reference tokens with self-attention across all target views, making them subject-conditioned and multi-view aware.

Open-vocabulary masks

A DPT head upsamples tokens to pixel-aligned relation features. A sigmoid over feature–text similarity gives the mask; Pi3’s point decoder lifts it to 3D.

One spatial arrangement can be described many ways (“standing on”, “on”, “supported by”), so each target mask is supervised with several compatible phrasings at once, using a multi-query sigmoid focal loss and a Dice loss.

Automatic relation annotation

Multi-view consistent relation labels are scarce and costly to annotate by hand. We build them automatically on ScanNet++: a VLM proposes relations per frame with Set-of-Mark prompting, proposals are kept only if at least three viewpoints agree, geometric checks on 3D boxes remove implausible edges, and an LLM rephrases each triplet to diversify the queries.

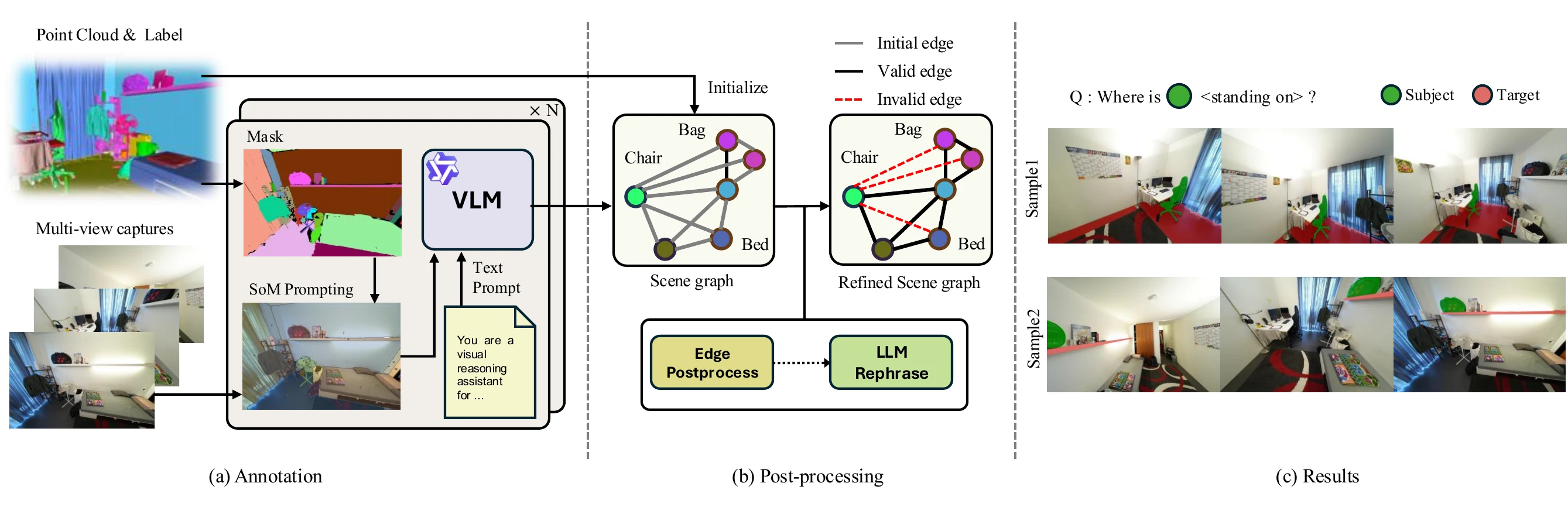

**Relation annotation pipeline.** (a) Instance masks are projected onto frames with SoM prompting to query a VLM for pairwise relations. (b) Proposals are aggregated into a scene graph and refined by geometry-aware post-processing and LLM rephrasing. (c) Multi-view consistent subject (green) and target (red) annotations.

Results

We evaluate on manually annotated relation benchmarks built on Replica, LERF, and ScanNet++: 119 queries covering 28 unique predicates. mAcc is the fraction of queries with IoU above 0.25.

Method	Setting	Replica		LERF		ScanNet++		Average
Method	Setting	mIoU	mAcc	mIoU	mAcc	mIoU	mAcc	mIoU	mAcc
LangSplat	Per-scene, posed	0.191	0.256	0.159	0.254	0.074	0.064	0.141	0.191
OpenGaussian	Per-scene, posed	0.349	0.470	0.256	0.378	0.162	0.254	0.255	0.367
RelationField	Per-scene, posed	0.326	0.537	0.276	0.410	0.307	0.491	0.303	0.480
RelationField†	Per-scene, posed	0.219	0.336	0.232	0.346	0.240	0.395	0.230	0.359
RelationVGGT (Ours)	Feed-forward, pose-free	0.446	0.640	0.254	0.332	0.445	0.675	0.382	0.549

Best Second Third. Average is the macro average over the three benchmarks. RelationField† removes target-object retrieval and uses the relation embedding alone. RelationField also receives the ground-truth target category at test time; RelationVGGT does not.

Wide camera baselines

We also compare with video foundation models, feeding the multi-view frames as a video with the subject region and relation, but not the target category. The 119 queries are sorted by camera baseline into three near-equal groups. Video models degrade as viewpoints spread apart, while the 3D geometry backbone keeps RelationVGGT stable.

Method	Small baseline (40)		Medium baseline (39)		Large baseline (40)
Method	mIoU	mAcc	mIoU	mAcc	mIoU	mAcc
VideoLISA	0.137	0.171	0.105	0.143	0.038	0.064
Sa2VA	0.267	0.321	0.225	0.289	0.192	0.225
UniPixel	0.423	0.496	0.328	0.451	0.354	0.475
RelationVGGT (Ours)	0.417	0.550	0.404	0.640	0.366	0.575

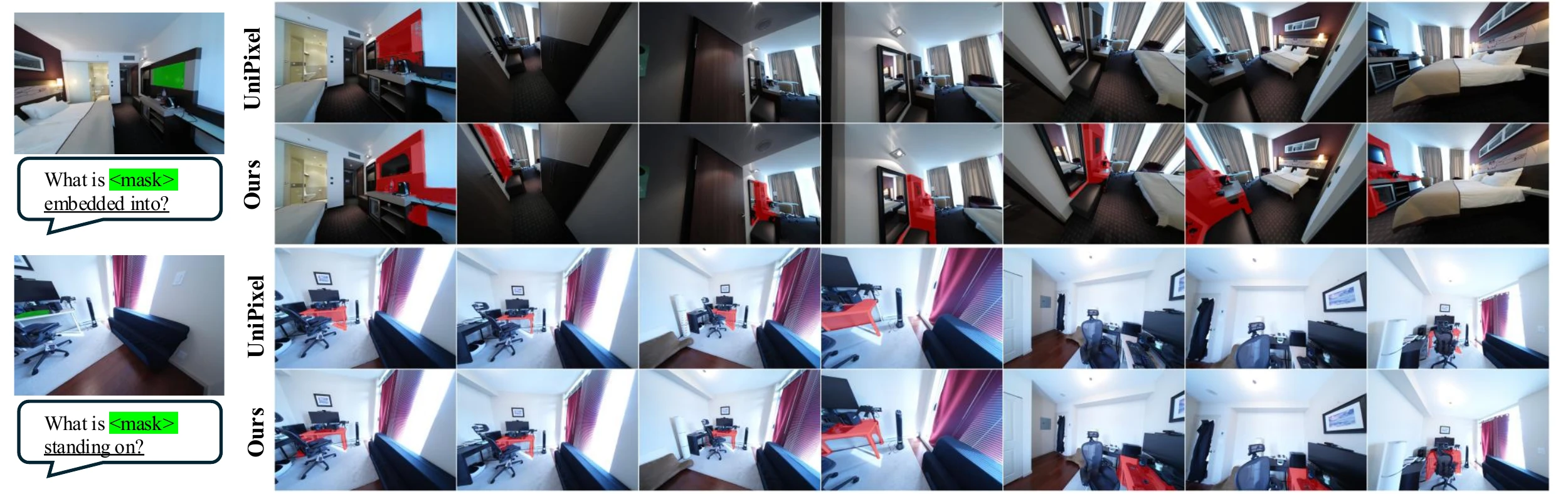

Comparison with UniPixel across views — **RelationVGGT vs. UniPixel.** Our masks stay consistent across views, whereas UniPixel loses the target as the viewpoint changes.

More analysis

Every component pulls its weight: removing any one of them lowers ScanNet++ mIoU by 0.023 to 0.075.

Input features. Replacing Pi3 tokens with positionally encoded, scale-standardized pointmaps drops mIoU from 0.445 to 0.370: raw coordinates carry geometry but none of the semantics already embedded in learned features. Removing DINOv2 (Pi3 only) costs 0.023 mIoU as object-level semantics are lost. Removing Pi3 (DINOv2 only) costs 0.075, since DINOv2 alone has no multi-view awareness and cannot capture cross-view correspondence.
Relation transformer. Our block alternates subject-conditioned cross-attention with global self-attention across target views. A cross-attention-only variant (0.399) and VGGT’s alternating attention, which interleaves global and per-frame self-attention (0.394), both fall short.
Training objective. Supervising each mask with a single predicate instead of several compatible ones drops mIoU to 0.406. Spatial relations are many-to-one, and multi-query supervision avoids penalizing semantically plausible alternatives.
Annotation pipeline. Training on labels without geometry-based edge filtering drops mIoU to 0.398, because the model then learns from physically implausible relations, such as contact between distant objects.

Design	mIoU	mAcc
RelationVGGT	0.445	0.675
1. Input features
Pointmap PE + DINOv2	0.370	0.568
Pi3 only	0.422	0.579
DINOv2 only	0.370	0.579
2. Relation transformer
Cross-attention only	0.399	0.579
Alternating attention (VGGT)	0.394	0.571
3. Training objective
Single-label focal loss	0.406	0.604
4. Annotation pipeline
w/o geometric edge filtering	0.398	0.625

ScanNet++ benchmark, 40 queries, threshold τ = 0.3.

A single click is enough: RelationVGGT needs the right instance, not a pixel-perfect subject mask.

We replace the ground-truth subject mask with prompted or automatically estimated masks, using the same checkpoint without retraining. A single SAM2 click or box works as well as the ground-truth mask: the boundary need not be precise, as long as the right instance is picked. Fully automatic grounding with Qwen3-VL + SAM2 keeps most of the accuracy; GroundingDINO drops more, mainly because 58% of reference views contain several instances of the queried category.

Subject mask	Mask IoU	mIoU	mAcc
Ground truth	1.000	0.382	0.549
SAM2, one click	0.871	0.383	0.551
SAM2, one box	0.923	0.382	0.549
Qwen3-VL + SAM2	0.719	0.357	0.512
GroundingDINO + SAM2	0.587	0.322	0.454

All three benchmarks, 119 queries.

RelationVGGT learns what a predicate means rather than matching memorized labels: synonyms leave its answer intact, while a different relation changes it.

Replacing each benchmark predicate with a meaning-preserving synonym barely changes the result, even for expressions whose stems never occur in training. Prediction is not tied to exact predicate strings.

Predicate replaced with	n	ΔmIoU	ΔmAcc
Common synonym, set A	119	−0.006	−0.006
Common synonym, set B	119	−0.004	−0.001
Rare synonym	113	−0.022	−0.042
Unseen synonym	119	−0.031	−0.040

The reverse check: when the predicate’s meaning is changed while the scene, subject, and original target stay fixed, predictions move away from the original target. The model responds to what the relation means, not only to the subject.

Predicate replaced with	n	ΔmIoU
Random relation from another family	119	−0.158
Relation with a different correct target	118	−0.276

Specifying the subject visually removes the instance ambiguity that text-only referring must resolve, giving +0.169 mIoU over the strongest adapted referring method.

MVGGT and ReferSplat take the subject as text rather than a mask, so we adapt each through its native text interface. With text alone, the subject must itself be grounded from a noun phrase, which is often ambiguous when several instances share a category.

Method	Subject given as	Target category in input	Test-scene optimization	mIoU	mAcc
MVGGT	Text	Yes	No	0.153	0.217
ReferSplat	Text	No	Yes	0.213	0.263
RelationVGGT	Visual mask	No	No	0.382	0.549

Averaged over all three benchmarks. Not a matched-input comparison: the methods also differ in query form, pretraining data, and optimization.

Multi-view and geometric filtering nearly doubles label precision, from 36.4% to 67.2%, deliberately trading coverage for reliability.

Two authors independently audited all 4,695 relation proposals our pipeline produced on 25 ScanNet++ scenes, without seeing its keep/remove decision. Filtering nearly doubles precision and discards most wrong relations. It is deliberately conservative: a false relation that survives becomes training supervision, while a dropped correct one only costs coverage.

Human audit, 25 scenes	Value
Precision before filtering	36.4%
Precision after filtering	67.2%
Incorrect proposals removed	92.0%
Proposals kept	770 of 4,695

Inter-annotator agreement 83.1% (Cohen’s κ = 0.670; 0.816 excluding ambiguous judgments).

BibTeX

@inproceedings{kim2026relationvggt,
  title     = {RelationVGGT: Visual Geometry Transformers for
               3D Spatial Relation Segmentation},
  author    = {Kim, Minsu and Choe, Jaesung and Lee, Jiwoo and
               Wang, Yu-Chiang Frank and Kim, Seon Joo},
  booktitle = {Advances in Neural Information Processing Systems},
  year      = {2026}
}
